SEMI-DOWN DRAFT
POWDER COATED SEMI DOWN DRAFT DOUBLE WALL SPRAY BOOTH
SIDE-DOWN DRAFT
POWDER COATED SIDE- DOWN DRAFT DOUBLE WALL SPRAY BOOTH
Mobile Spraybooth
FULL-DOWN DRAFT
POWDER COATED FULL- DOWN DRAFT DOUBLE WALL SPRAY BOOTH
JP Filters Co. is dedicated to providing the most energy efficient and eco-friendly paint spray booths in the industry. We take pride in our relationships with our clients, automotive industry. We guarantee your new spray booth will be manufactured and installed with the utmost integrity and with complete customer satisfaction! Call today for more information and a FREE estimate from one of our qualified spray booth technologists. There is no job too big or too small!
Don't Hesitate, Let Your Business Grow
THE FULL DOWN-DRAFT BOOTH is considered by many to be the most effective of all automotive designed paint spray booth to accomplish the following: Clean intake air travels from filtered plenum overhead, past the operator’s face, to exhaust filters. Less Overspray potential on the material being painted. Less downdraft velocity required to move hazardous VOC’s in a natural downward movement. Downward face velocity approximately 50 feet per minute.
Top Sellers
Browse 3 of our Best Sellers
Bellow are the most popular and top seller spray booths, please keep in mind that prices are estimates of the average quotations, for the most accurate price please feel free to give us a call.
Semi Down
$35K+
CALL FOR PRICING

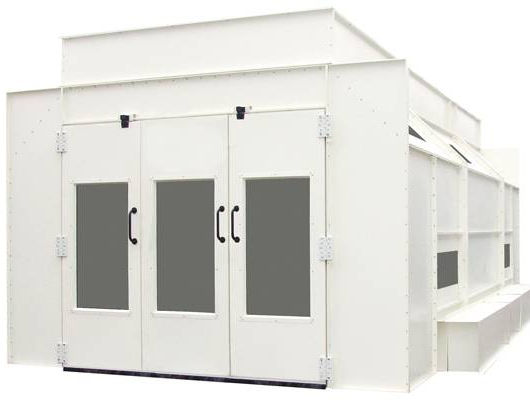

POWDER COATED SEMI DOWN DRAFT
DOUBLE WALL SPRAY BOOTH.
DIMENSIONS:
In-Dimensions: 14′ 0″ W X 9′ 0″ H X 24′ 0 L.
Ex-Dimensions: 14′ 4″ W X 10′ 8″ H X 24′ 4″ L.:
DESIGN:
JPFC24-12L is an enclosed semi down draft double wall auto spray booth. Air enters through a top
ceiling plenum and is exhausted in the back through a center exhaust plenum with paint arrestor filters.
Lights are exterior mounted on clear
tempered glass for maximum light. Man access door is located on the side for personnel access.
CONSTRUCTION:
All panels constructed double wall with 20 gauge galvanized steel with 2″ flange pre-punched inter-lock nut & bolt assembly.
DOORS:
Main Product Doors: (1) Set of tri-fold product doors for a 10′ W X 9′ H opening with observation
windows.
Man Access Doors: (1) Personnel access door with observation window size 42″ W X 84″ H.
INTAKE:
Blanket Filters: (2) 37″ x 108″ blanket filter.
EXHAUST:
Exhaust Fan: (1) 30″ dia. Tube-axial fan.
Exhaust Motor: (1) 3HP 3-Phase. 240/480v.
Exhaust Filters: ( ) 20″ x 20″ x 2″ Paint Arrestor Filters with Wire Grids.
LIGHTING:
Light Fixtures: (12) Deluxe Inspection Grade 4-Tube T-5 120/277V. Open type light fixtures 4 tubes
T5. Electronic Ballast.
HARDWARE:
Set of Installation kit: Hardware, Caulking, Manometer, Screws,Nuts, Bolts, Foam tape,Flat
JPFC24-12 DELUXE LIGHT FIXTURES.
No product
Side Down
$45K+
CALL FOR PRICING
WHITE POWDER COATED SIDE DOWN
SPRAY BOOTH.
DIMENSIONS:
In-Dimensions: 14’0″ Wide X 9’0″ High X 27’0″ Depth.
Ex-Dimensions: 18’0″ Wide X 9’2″ High X 27’4″ Deep.
DESIGN:
JPFC27-12L is an enclosed side down draft auto spray booth. Air enters through the intake filters in the ceiling and is exhausted into the arrestor filters located on both sides of the booth. Lights are exterior mounted on clear tempered glass for maximum light out-put. Man access door is located on the side for personnel access. Hi-volume fan and motor are included. Spray booth is gable design for efficient air flow and lighting.
CONSTRUCTION:
All panels constructed with 18 gauge galvanized steel with 2′ PRE-PUNCHED (Nut & Bolt) panel flanges on outside of unit.
DOORS:
Main Product Doors: (1) Set of main product doors for a 9′ X 9′ opening. Tube steel, dual skin. With observation window. 18 Ga. Galvanized stell panels.
Man Access Doors: (1) Personnel access door with observaiton window size 42″ Wide X 84″ High.
EXHAUST SYSTEM:
PULLEY AND BELTS ARE INCLUDED.
Exhaust Fan: (2) 24″ dia. Tube-axial fan.
Exhaust Motor: (2) 3-Hp 3-Ph Motor.
CFM:
Exhaust Filters: (20) 20′ x 20′ x 2′ Paint Arrester Filters with Wire Grids.
INTAKE SYSTEM:
Intake Air Filters: (2) 37′ x 108′ filter blankets.
D LIGHTING:
Light Fixtures: (12) Inspection Grade 4-Tube T-8 120/277V Electronic Ballast with (12) open type, (0) Class 1/Div 2.
HARDWARE:
Set of Installation kit: Hardware, Caulking, Manometer, Screws,Nuts, Bolts, Foam tape,Flat Rubber, Filters, Wire Grids, Clear tempered glass for the open light fixtures,Small & Large brixon latch, And Assembly Drawings.
JPFC-14-9-27-12L
No product
Full-Down Draft
$55K+
CALL FOR PRICING
WHITE POWDER COATED FULL-DOWN DRAFT
SPRAY BOOTH.
Construction
Single/Double Wall pre-punched 6" on center designed for strength and easy assembly available in Galvanized or Powder Coated
THE FULL DOWN-DRAFT BOOTH is considered by many to be the most effective of all automotive designed paint spray booth to accomplish the following: Clean intake air travels from filtered plenum overhead, past the operator’s face, to exhaust filters.Less overspray potential on the material being painted.Less downdraft velocity required to move hazardous VOC’s in a natural downward movement.Downward face velocity approximately 50 feet per minute.
Lighting
Open-Type (O. T.) Fluorescent Light Fixtures as listed are U.L. and C-U.L. approved, 4’ long, 4-tubes.All Light Fixtures are placed on the outside of 1/4” Clear Tempered Glass.
Additional Features
Conveyor openings, Explosion-proof motors, Working depth extensions, Special width or height requirements, Special lighting arrangements
No product
Fan & Motor
3-phase 208/230/460 volt, 60 Hz.Solenoid Valve is single phase. Voltage must be stated (110/220 etc). Fan Outlet is engineered to fit pit configuration.
Our Services
Servicing
We service all our products to
maintain quality.
Upgrades
We can upgrade any existing Spray booth to its fullest.
Repair
If anything should go wrong, we
can fix it.
Installation
Installation services are provided from our pro installers.
